Starch syrups purification by MEGA ED

Starch syrups purification by MEGA electrodialysis

Technology for the treatment of starch-based syrups

Did you know?

MEGA ED meets the regulations for organic (BIO) food labeling.

Why consider the modernizing production of starch syrups

Innovated cost-effective and additive-free technology for starch-based syrups

Innovated cost-effective and additive-free technology for starch-based syrups

2–3× less waste produced compared to IEX columns
Return on investment 1–3 years
Reduce operating costs
No chemicals for regeneration
Solution suitable for organic production
Excellent taste of the product

Leading with innovative technology, MEGA offers efficient demineralization solution without the excessive use of chemicals. This represents a progressive shift from the traditional reliance on ion‑exchange columns.

Ask our experts for help with your project





New challenge for starch syrups producers

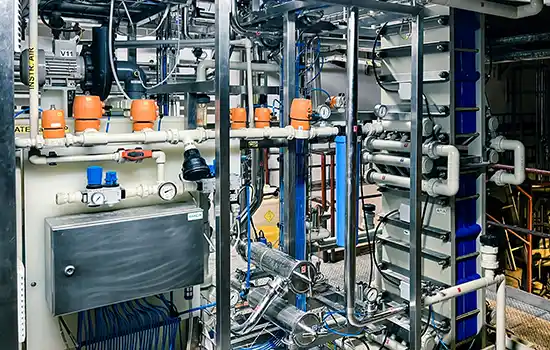

Success story – MEGA’s sustainable solution

Success story – MEGA’s sustainable solution

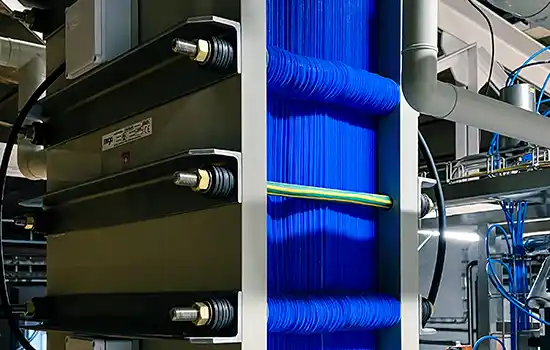

MEGA offers highly efficient electrodialysis technology to demineralize starch-based syrups, which significantly affects their organoleptic properties. Using MEGA technology, you obtain a final product of excellent taste with significantly lower operating costs.

The demineralization of starch syrups using MEGA electrodialysis is an innovative technology compared to conventional ion exchange (IEX) columns methods of starch syrups treatment, both in terms of economics and quality.

At the same time, electrodialysis presents the great advantage of being a continuous process without the addition of reagents and thus meets the stringent conditions to produce organic (BIO) foods.

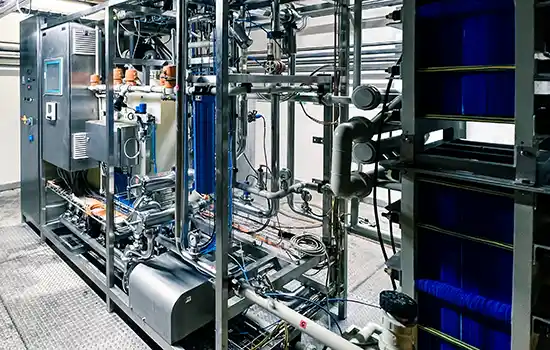

Why use electrodialysis instead of IEX for starch-based syrup purification

Why use electrodialysis instead of IEX for starch-based syrup purification

Ion‑exchange (IEX) columns have been used in the demineralization industry for decades and constitute a proven mature technology. But they have been displaced from most industries in the modern era, mainly due to their extensive use of chemicals.

MEGA has developed and introduced technology for the demineralization of maltodextrin and the replacement of ion‑exchange columns without causing extensive environmental impact.

Typical operating parameters for starch syrups purification by electrodialysis

Typical operating parameters for starch syrups purification by electrodialysis

  • Temperature: approx. 60 °C.
  • Feed conductivity: 0.5–2.5 mS/cm.
  • Minimal achievable conductivity: 15 µS/cm.
  • Average stable product conductivity: 25 µS/cm.
  • Additional steam waste condensate required: approx. double the feed volume.
  • Approx: 1–4.9 kWh per 1 ton of product (liquid).
  • Negligible requirement for chemicals for CIP: (HNO3 + NaOH).
  • Product losses: approx. 4–5 % (liquid).

Technology suitable for different sugar syrups

These products have the lowest dextrose content and are used for their thickening properties rather than sweetness.

Still low in sugar content, maltodextrin is often used as a filler or texturizing agent.

Containing a moderate amount of dextrose, glucose syrups in this range are used in confections and other sweetened products.

With more sweetness, these syrups are often used in brewing and candy‑making.

These have the highest dextrose content and are very sweet, used in a variety of food products.

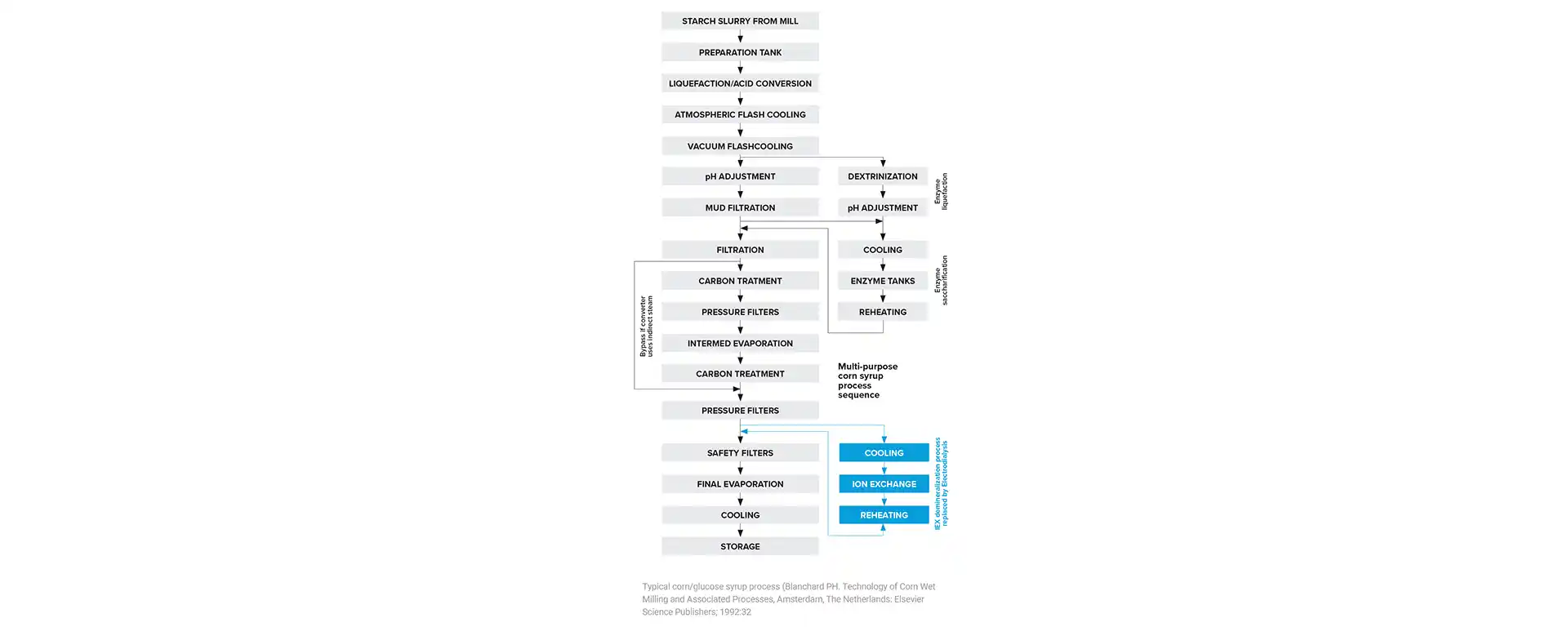

How can be traditional IEX demineralization process replaced by progressive MEGA electrodialysis

Traditional IEX demineralization process replaced by progressive MEGA electrodialysis





Advantages

Advantages of MEGA solution

Advantages of MEGA solution

  • No dilution and subsequent thermal concentration compared to IEX.
  • 2–3× less waste produced compared to IEX columns.
  • Return on investment 1–3 years (depending on product and level of demineralization).
  • Solution suitable for organic production (IEX is no longer accepted in the EU).
  • Technology can be made continuous, saving on accessories for the batch process; no recirculation means a reduced number of pumps, valves, instruments, etc.
  • Mature and tested technology.
  • Highly reduced requirement for chemicals, minor compared to IEX columns.
  • Membranes with the highest lifespan on the market.
  • Automatic membrane systems.

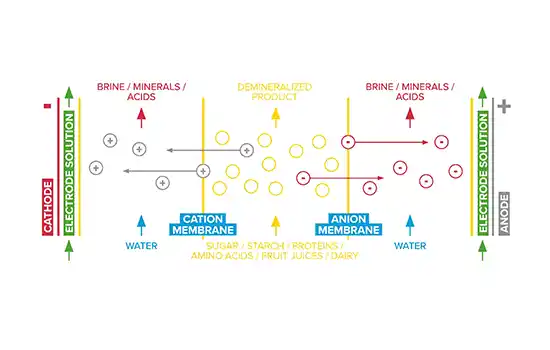

Process description for starch-based syrup purification using ED

Process description

An electric field gradient‑driven process enables the separation of minerals from the feed solution. This is achieved by moving dissociated ions through ion-permeable selective membranes, thereby forming two different flows: a demineralized flow called diluate, and a concentrated flow called concentrate.

Substances without a permanent positive or negative electrical charge, such as sugars, do not pass through the membranes during the process. Therefore, purification of saccharide solutions can be achieved with minimal or no product losses.

Request a free quotation for your starch syrups purification project

Our experts are ready to find the best solution for your starch-based syrup improving process.

Please, fill out the form below. We will reach out to you as soon as possible.
